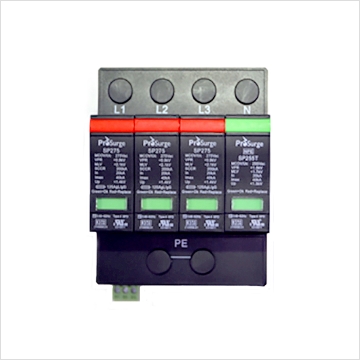

[L-N] SP275
페이지 정보
NAME 최고관리자 VIEW 638 DATE 18-06-20 15:43본문
| Model No. | [L-N] SP275 |
|---|---|
| Type | DIN-RAIL |
| Voltage Protection Rating | VPR 〈 0.9kV |
| Measurement limit voltage | MLV 〈 2.1kV |
| Short Circuit Current Rating | SCCR 200kA |
| MCOV | Uc 275V ac |
| Nominal Discharge Current | In 20kA |
| Maximum Discharge Current | Imax 40kA |
| Voltage Protection Level | Up ≤ 1.4kV |
| Surge Fuse | sauce125A gL/gＧ |
| Environmental temperature | -40 ~ +85℃ |
